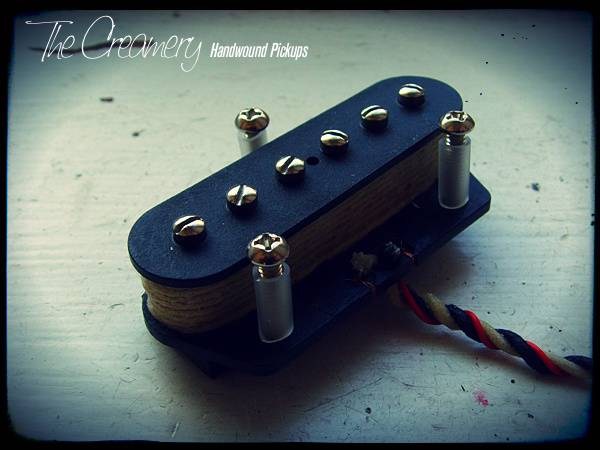

Tele-90 'Mid-Range' Tele Size P90 Bridge

SKU:TeleP90

Tele-90 - Tele Sized P90 Design Pickup - Mid-Range

Warmer, Grittier, dirtier P90 sound from a Tele Bridge position pickup

£95.00
Coil Protection
Magnets
https://www.creamery-pickups.co.uk/custom-p90-for-telecaster-bridge/113/18/custom-handwound-replacement-pickups/creamery-handwound-pickups-custom-signature-range/telecaster-p90-bridge-pickup-detail.html
  • Magnet: Custom Alnico 5

    Poles: Slotted Steel Filister Head P90 Screw

    Polarity: South Up

    Coil Wire: 43AWG Plain Enamel

    Lead Wire: Vintage Cloth Pushback

    Output: 12.0k

    Telecaster Sized P90 Bridge Pickup - Mid-Range

    A P90 design in a standard Telecaster Bridge size. The Creamery Telecaster sized P90 'Mid-Range' pickup houses two custom sized Alnico 5 magnets, wider steel screws and a short, fat 43AWG coil. Fatter, grittier, dirtier single-coil voice still with clarity, presence & definition - JUts a darker, rounder, fuller than the Tele-90 'Treble' version. Get the grittier P90 sound in a standard Telecaster Bridge size.

    The geometry of the standard Tele Bridge Pickup size as opposed to a standard P90 means there will always be a slight difference in sound between the two pickups as the coil will be slightly narrower and therefore taller to achieve an approximate output level - Its for this reason I don't call it a "true" P90 although I've voiced this pickup to have more of that darker, grittier P90 edge. A higher output, fat single-coil sound in a standard Tele Bridge sized pickup.

    Tele-90 'Mid-Range' Bridge available in Alnico 5 and Double-Thickness Alnico 5 Options

    I've had two designs of magnet custom manufactured for these pickups, a standard option Alnico 5 for a more mellower take and a double-thickness Alnico 5 for a stronger, more attacking, punchier sound.

    Please Note: The Tele-90 bridge is about 2mm taller with the standard Alnico 5 Magnets and about 5mm taller than a standard Tele Bridge pickup with the Double-Thickness Alnico 5 magnets and whilst it will fit many cavities, if you have a shallow bridge cavity, please check. The total height of the pickup with pole screws is 18mm or 21mm whereas a standard Tele bridge is around 17-18mm. You'll need a minimum cavity space of at least about 14mm to fit the pickup.




    You can find more details of my Creamery Custom Shop Handwound Replacement Telecaster Pickups here.
